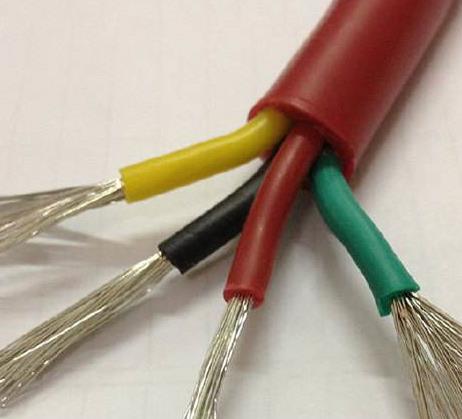

硅橡膠電纜線FYGC
- 電 話：0550-7311277
- 傳 真：0550-7311277
- 郵 箱：1045779281@qq.com
產品描述
在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良，z小彎曲半徑為電纜外徑16倍，可移動使用。
使用于交流額定電壓450/750V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
FYGC硅橡膠電纜線的特性：
1、額定電壓：450V/750V
2、工作溫度：-60～ 200℃
3、導 體：裸銅導體或絞合鍍錫銅線
4、絕 緣：FEP 鐵氟龍
5、護 套：硅橡膠
6、顏 色：紅/黃/蘭/白/黑/棕/綠等FYGC硅橡膠電纜線規格結構及技術參數：
交貨要求：
按雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
芯數×截面 | 導體結構 | 絕緣厚度 | 絕緣外徑 ( mm ) | 護套厚度 ( mm ) | 平均外徑 ( mm ) | 20 ℃時導體直流電阻 |
2 × 0.08 | 7/0.12 | 0.20 | 0.78 | 0.80 | 2.40 | 245 |
3 × 0.08 | 7/0.12 | 0.20 | 0.78 | 1.0 | 3.80 | 245 |
4 × 0.08 | 7/0.12 | 0.20 | 0.78 | 1.0 | 4.00 | 245 |
5 × 0.08 | 7/0.12 | 0.20 | 0.78 | 1.20 | 4.50 | 245 |
6 × 0.08 | 7/0.12 | 0.20 | 0.78 | 1.40 | 5.20 | 245 |
7 × 0.08 | 7/0.12 | 0.20 | 0.78 | 1.40 | 5.20 | 245 |
2 × 0.12 | 7/0.15 | 0.25 | 0.95 | 0.90 | 3.80 | 163 |
3 × 0.12 | 7/0.15 | 0.25 | 0.95 | 1.0 | 4.10 | 163 |
4 × 0.12 | 7/0.15 | 0.25 | 0.95 | 1.0 | 4.30 | 163 |
5 × 0.12 | 7/0.15 | 0.25 | 0.95 | 1.20 | 5.0 | 163 |
6 × 0.12 | 7/0.15 | 0.25 | 0.95 | 1.20 | 5.20 | 163 |
7 × 0.12 | 7/0.15 | 0.25 | 0.95 | 1.20 | 5.20 | 163 |
8 × 0.2 | 7/0.15 | 0.25 | 0.95 | 1.20 | 5.60 | 163 |
10 × 0.12 | 7/0.15 | 0.25 | 0.95 | 1.30 | 6.40 | 163 |
12 × 0.12 | 7/0.15 | 0.25 | 0.95 | 1.30 | 6.80 | 163 |
19 × 0.12 | 7/0.15 | 0.25 | 0.95 | 1.30 | 7.40 | 163 |
2 × 0.2 | 7/.20 | 0.25 | 1.10 | 1.20 | 4.60 | 90.4 |
3 × 0.2 | 19/0.12 | 0.25 | 1.10 | 1.30 | 5.0 | 90.4 |
3 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.50 | 5.50 | 90.4 |
4 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.20 | 5.0 | 90.4 |
5 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.20 | 5.40 | 90.4 |
5 × 0.2 | 19/0.12 | 0.25 | 1.10 | 1.50 | 6.0 | 90.4 |
6 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 5.80 | 90.4 |
7 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 5.80 | 90.4 |
8 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.20 | 6.0 | 90.4 |
10 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.20 | 6.80 | 90.4 |
12 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.40 | 7.50 | 90.4 |
19 × 0.2 | 7/0.20 | 0.25 | 1.10 | 1.40 | 8.20 | 90.4 |
2 × 0.35 | 19/0.16 | 0.25 | 1.30 | 0.80 | 4.20 | 53.1 |
3 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.10 | 5.0 | 53.1 |
4 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 5.50 | 53.1 |
5 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.30 | 6.20 | 53.1 |
6 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.40 | 6.80 | 53.1 |
7 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.40 | 6.80 | 53.1 |
8 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.40 | 7.0 | 53.1 |
9 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 7.80 | 53.1 |
10 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 8.20 | 53.1 |
12 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 8.40 | 53.1 |
14 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 8.80 | 53.1 |
19 × 0.35 | 19/0.16 | 0.25 | 1.30 | 1.50 | 9.50 | 53.1 |
2 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.20 | 5.20 | 40.1 |
3 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.20 | 5.50 | 40.1 |
4 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 6.20 | 40.1 |
5 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 6.60 | 40.1 |
6 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 7.0 | 40.1 |
7 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 7.0 | 40.1 |
8 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 7.40 | 40.1 |
9 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.40 | 8.0 | 40.1 |
10 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.50 | 8.60 | 40.1 |
12 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.50 | 8.80 | 40.1 |
14 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.50 | 9.20 | 40.1 |
17 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.60 | 10.2 | 40.1 |
19 × 0.5 | 19/0.18 | 0.25 | 1.40 | 1.60 | 10.2 | 40.1 |
2 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.10 | 5.60 | 24.60 |
3 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.40 | 6.50 | 24.60 |
4 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 7.20 | 24.60 |
5 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 7.60 | 24.60 |
6 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.10 | 24.60 |
7 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.10 | 24.60 |
8 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.60 | 24.60 |
10 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 10.0 | 24.60 |
12 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 10.30 | 24.60 |
14 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 10.80 | 24.60 |
19 × 0.75 | 19/0.23 | 0.25 | 1.70 | 1.80 | 12.10 | 24.60 |
2 × 1 | 19/0.26 | 0.25 | 1.80 | 1.20 | 6.0 | 20.4 |
3 × 1 | 19/0.26 | 0.25 | 1.80 | 1.20 | 6.20 | 20.4 |
4 × 1 | 19/0.26 | 0.25 | 1.80 | 1.20 | 6.80 | 20.4 |
5 × 1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 7.60 | 20.4 |
6 × 1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 8.20 | 20.4 |
7 × 1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 8.20 | 20.4 |
8 × 1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 8.60 | 20.4 |
10 × 1 | 19/0.26 | 0.25 | 1.80 | 1.60 | 10.40 | 20.4 |
12 × 1 | 19/0.26 | 0.25 | 1.80 | 1.60 | 10.80 | 20.4 |
14 × 1 | 19/0.26 | 0.25 | 1.80 | 1.60 | 11.20 | 20.4 |
19 × 1 | 19/0.26 | 0.25 | 1.80 | 1.80 | 12.60 | 20.4 |
2 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.0 | 6.50 | 12.7 |
3 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.40 | 7.60 | 12.7 |
4 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.40 | 8.20 | 12.70 |
5 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.50 | 9.10 | 12.70 |
6 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.50 | 9.80 | 12.70 |
7 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.50 | 9.80 | 12.70 |
8 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.60 | 10.60 | 12.70 |
10 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.60 | 12.20 | 12.70 |
12 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.80 | 13.0 | 12.7 |
14 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.80 | 13.60 | 12.70 |
19 × 1.5 | 19/0.32 | 0.30 | 2.25 | 1.80 | 14.90 | 12.70 |
2 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.40 | 8.40 | 7.43 |
3 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.40 | 8.80 | 7.43 |
4 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.50 | 9.80 | 7.43 |
5 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.50 | 10.60 | 7.43 |
6 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.60 | 11.6 | 7.43 |
7 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.60 | 11.6 | 7.43 |
8 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.80 | 12.80 | 7.43 |
10 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.80 | 14.80 | 7.43 |
12 × 2.5 | 19/0.41 | 0.40 | 2.80 | 1.80 | 15.20 | 7.43 |
14 × 2.5 | 19/0.41 | 0.40 | 2.80 | 2.0 | 16.40 | 7.43 |
19 × 2.5 | 19/0.41 | 0.40 | 2.80 | 2.0 | 18.0 | 7.43 |
